Aeye LiDAR Setting

This chapter provides instructions on how to adjust settings of your AEYE LiDARs.

Default network settings​

By default, all Aeye lidars are set with the following:

  • IPv4 Address: 10.10.10.143

In case you do not know your device's network settings, you can follow these instructions.

Change network settings​

AEYE LiDARs provide a web console to access their parameters. To access it and update network settings, please follow the steps below:

  1. Power the AEYE LiDAR and connect it to a computer through Ethernet
  2. In a browser, type the LiDAR's ip address

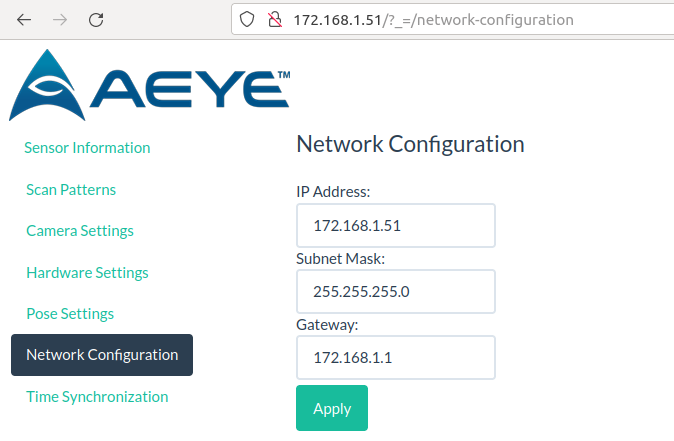

  3. In the console, select Network Configurationaeye-console-settings
  4. Update the Network Configuration with the desired parameters and click on Apply
  5. Power off and on the LiDAR
