Time Synchronization

Overview

SENSR-I supports the distributed system with multiple Algo nodes. In this case, the time synchronization between the Master node machine and Algo node machines is required to ensure the accuracy of the perception result. It’s because SENSR-I uses timestamps to merge the perception results of each Algo node.

In general, time synchronization is not very important, but use it when many Algo nodes are used, and system clock differences may occur due to long-term use.

Protocol

SENSR-I supports configuring the time synchronization between the Master node machine and Algo node machines using the PTP protocol. The built-in function of SENSR-I makes it easy to set up a very simple PTP configuration for customer convenience. The guide below is also an elementary PTP setting. If you have an additional understanding of PTP, you can use the relevant config information to configure the settings optimized for your needs.

Furthermore, time synchronization can be set outside SENSR-I using the network. It can be solved through other protocols or software other than the built-in function of SENSR-I.

How to check the time difference of each Algo node

You can find the time difference between the Master node machine and Algo node machines either by hovering the mouse over ** ms at the right side of Algo node in Project Setup mode or Window > Connection Monitor in Runtime mode.

Time synchronization between LiDARs and Algo node machines

SENSR-I currently does not support time synchronization between LiDARs and Algo node machines. Theoretically, LiDARs supporting the PTP protocol can also be synchronized together. For details, please refer to the manuals of LiDAR manufacturers or ask via support@seoulrobotics.org.

How to use Time-sync feature in SENSR-I

1. Check the network information of each node machine.

   • You can check it with ifconfig command in the terminal.
   • Check the network interface (for example, enp4s0) and whether it's unicast.

2. Click Start Algo node(s) in Project Setup mode or Go to Runtime mode.

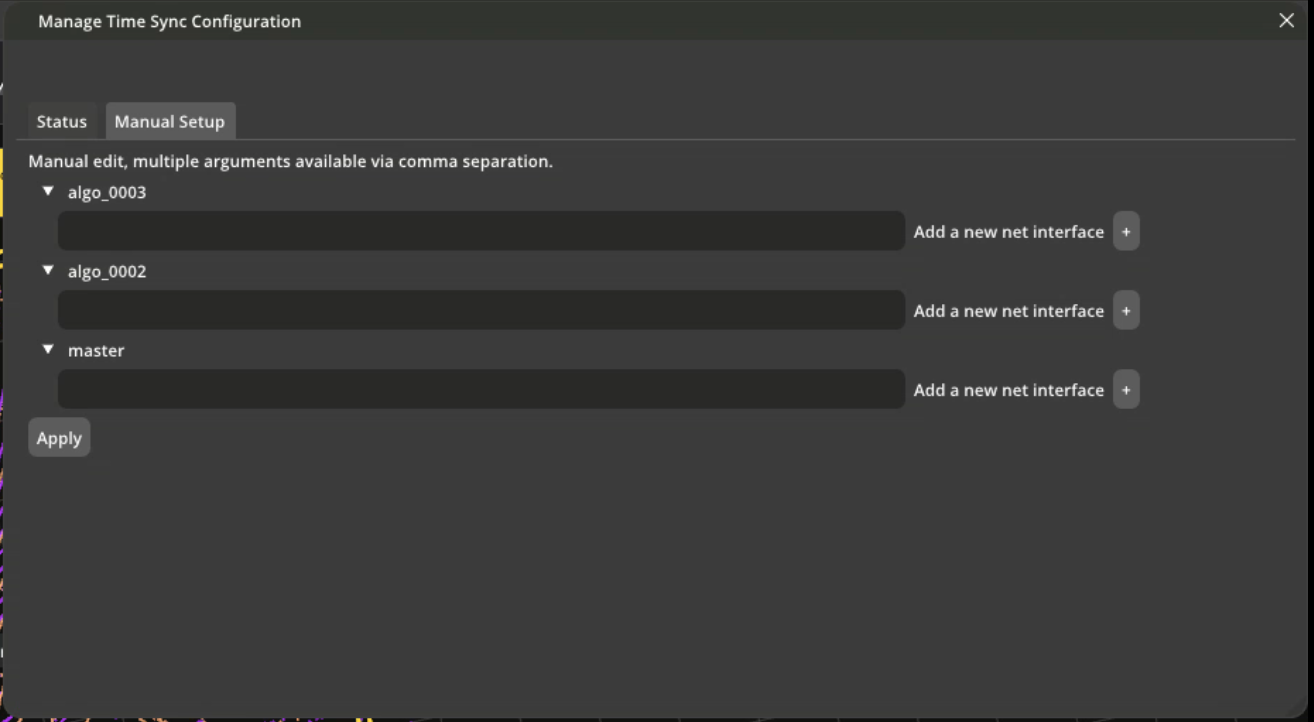

3. Go Settings > Advanced Features > Time Synchronization and select Manual Setup tab.

4. Configure the settings following the guide below.

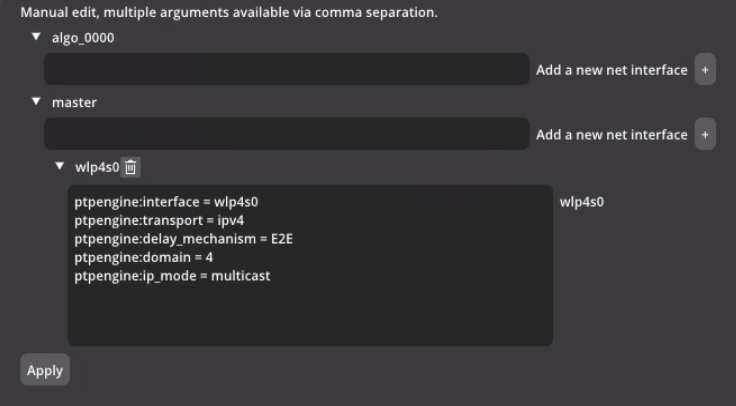

   1. Select any nodes, type the name of a new network interface (recommended name is the network interface, such as enp4s0), and click + button.
   2. Put the PTP configurations for the node. (Since it exposes underlying ptpd configuration parameters for time synchronization, you can refer to ptpd configs for full list of ptpd configs and configure by yourself, or follow the sample configuration below.)
   3. Repeat the step 1 and 2 for each node machines.
   4. You must not set it up for the Algo node which is running in the same machine with the Master node.

5. Press Apply button.

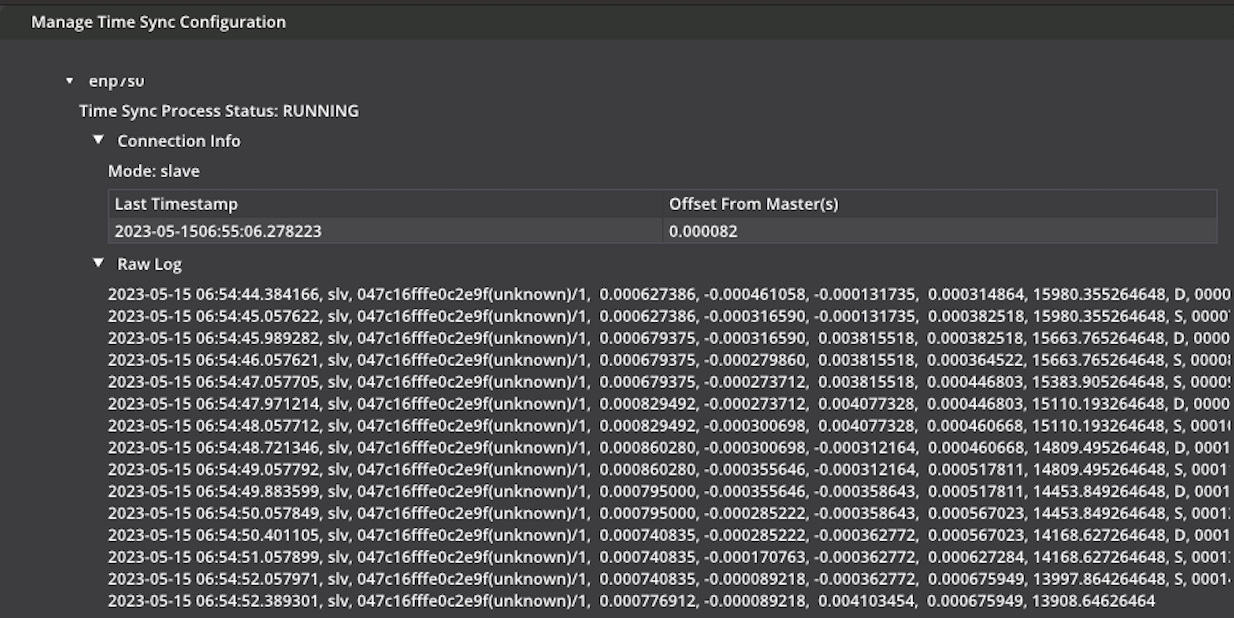

6. You can check time synchronization is working in Status tab.



   • For Master node time sync instance, we show IP of each devices connected and estimated offset from master clock.
   • For Algo node time sync instance, we show IP of master clock device, last time sync, and delay from delay request packet.

Sample PTP configuration

• Master node machine with unicast

  ptpengine:interface = <network-interface>
  ptpengine:preset = masteronly
  ptpengine:transport = ipv4
  ptpengine:ip_mode = unicast
  ptpengine:unicast_negotiation = Y
  ptpengine:delay_mechanism = E2E
  ptpengine:domain = 3
  ptpengine:unicast_destinations = [<list-of-algo-node-ips-using-comma-seperation>]
  # example of unicast_destinations = [10.10.1.101, 10.10.1.120]
  # don't put the IP of the Algo node which is running in the same machine with the Master node.

• Algo node machine with unicast:

  ptpengine:interface = <network-interface>
  ptpengine:preset = slaveonly
  ptpengine:transport = ipv4
  ptpengine:ip_mode = unicast
  ptpengine:unicast_negotiation = Y
  ptpengine:delay_mechanism = E2E
  ptpengine:domain = 3
  ptpengine:unicast_destinations = <master-node-machine-ip>
