Auto Fine-tuning (beta)

info

This feature is still in beta version. Its results are not guaranteed for all cases. Please check the result and apply the changes if you are satisfied with the results. The feature will be improved in the next updates.

Auto Fine-tuning

Auto Fine-tuning calibrates the target LiDAR to match more accurately with the reference LiDAR(s) without any additional information. This feature increases further the accuracy of a first manual calibration. It calibrates the target LiDAR most appropriately using the distances between the point clouds of the target LiDAR and the ones of the reference LiDAR(s).

Prerequisites

• Data coming from at least two LiDARs.
• At least one LiDAR is calibrated using Ground Alignment or Manual Calibration to be used as reference LiDAR(s).
• Rough manual calibration was performed to the target LiDAR.
• The actual overlapping region of 2 point clouds is large enough to find the optimal solution.

Steps

1. Click Tool > QuickTune > Auto Fine-tuning.

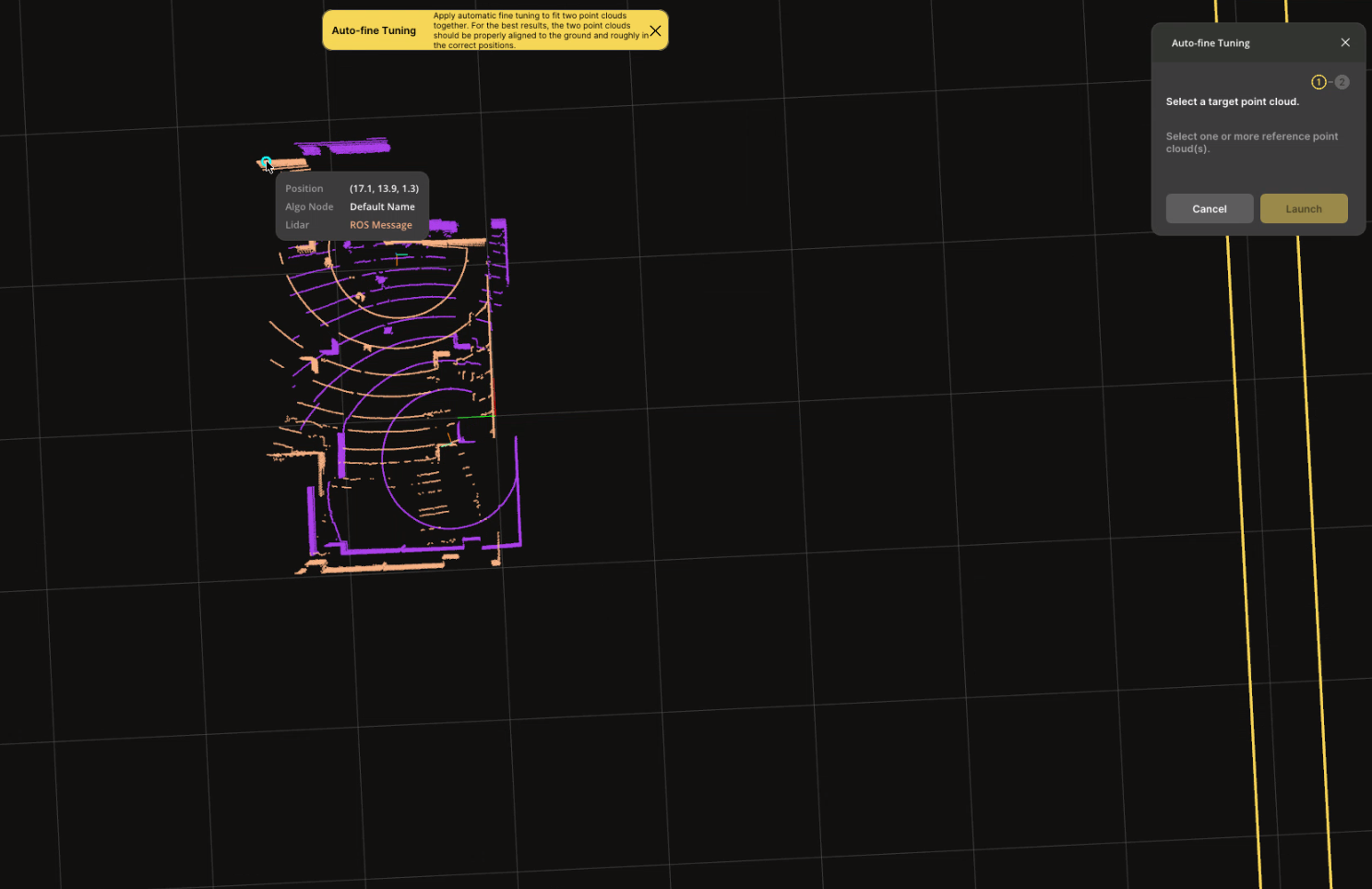

2. Select the target LiDAR that you want to calibrate.

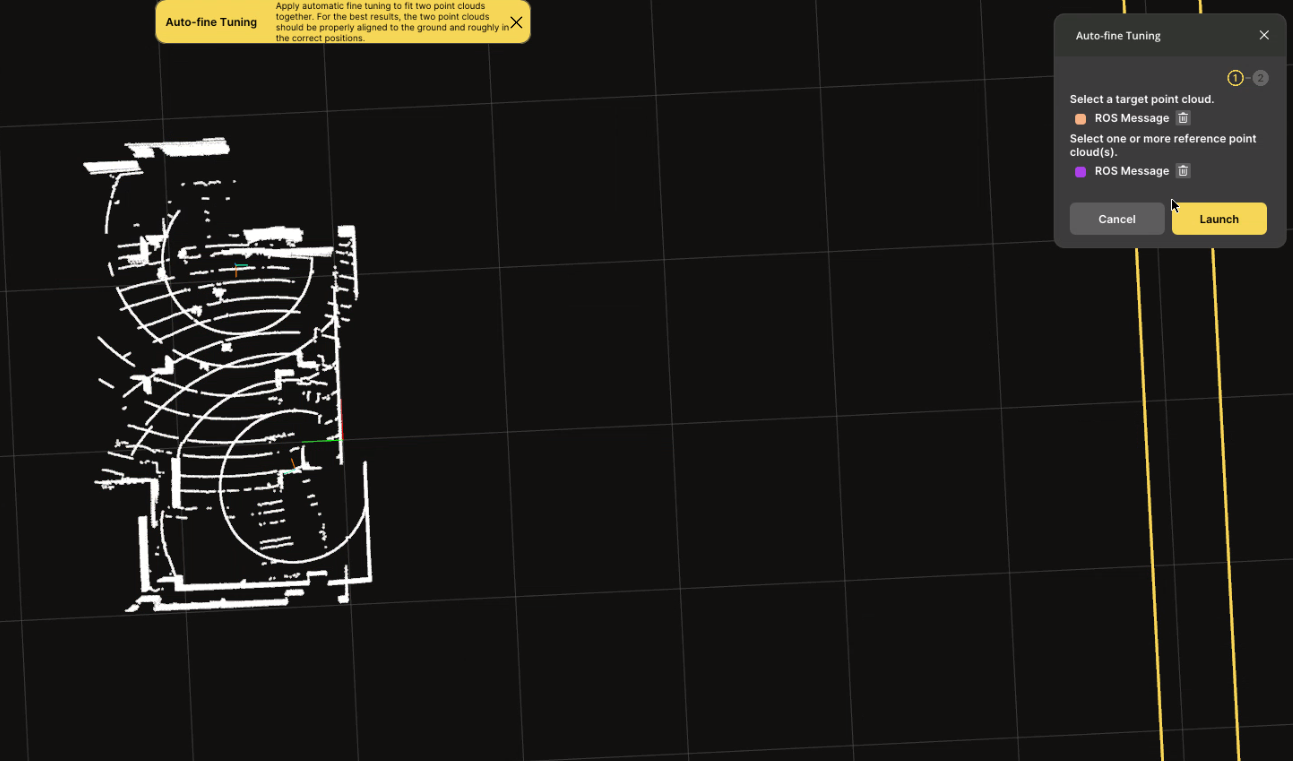

3. Select the reference LiDAR(s) that you have already calibrated.

   - At least one LiDAR should be added as reference LiDAR.
   - *Note: the quality of the Auto fine-tuning varies depending on the overlap area between LiDARs*



4. Click "Launch" button when you are done with selecting reference LiDARs.

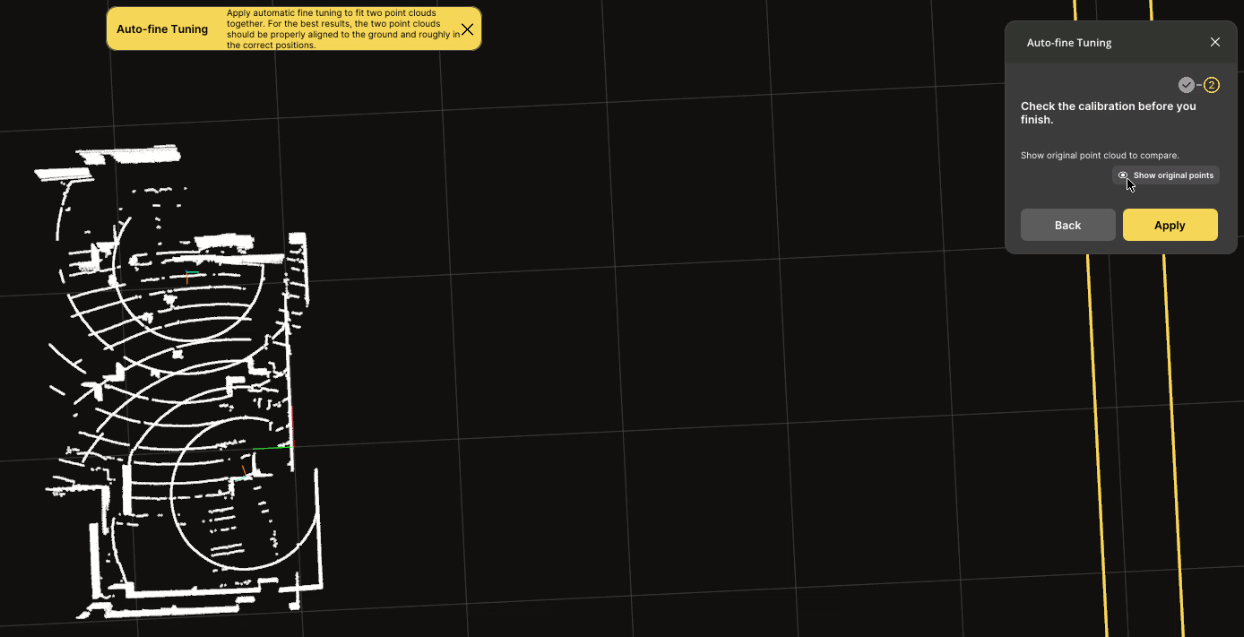

5. Calibration results will be shown. Make sure LiDARs are well-calibrated by clicking "Hold to show original points" button and comparing the changes.

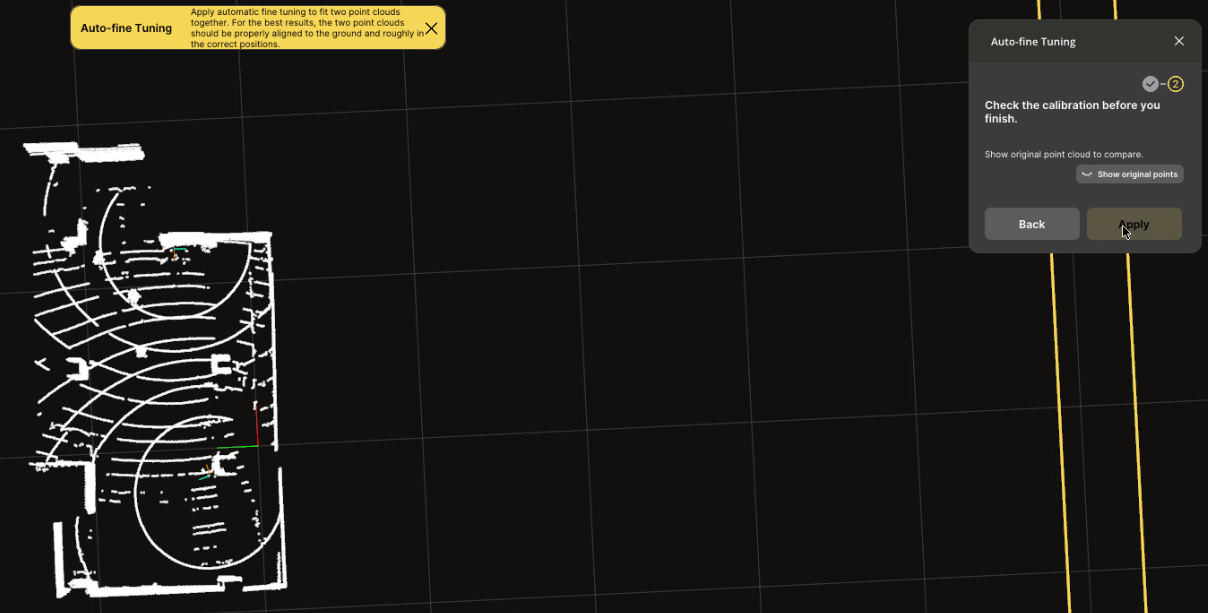

6. Click "Apply" button to save the calibration result.
